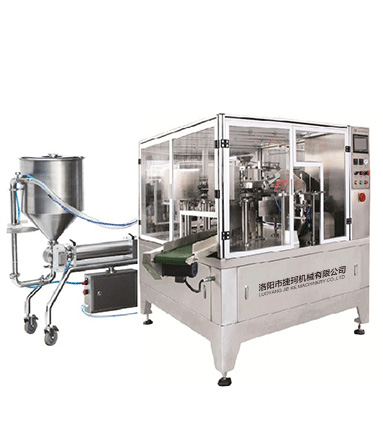

Wide applications for packaging: applicable to liquids of high viscosity.
Wide applications for packaging: applicable to liquids of high viscosity.
Easy operation: PLC control and man-machine interface operating system, easy to operate.
Convenient adjustment: the equipment can be adjusted at one time, and the adjustment distance is unified to ensure that the bag is stable and not dropped, further improving the qualification rate.
Bag loading method: adopting the latest push-pull type bag, when changing the bag, there is no need to replace the splint, no need to worry about collision, the bag is flattened, the success rate of the bag feeding is improved, the stability is increased, and the operation is convenient.
Bag opening method: the latest mechanical bag opening mechanism is adopted, and the bag opening adopts a two grades variable speed sliding mechanism, which increases the success rate of bag opening, reduces the probability of empty bags, and avoids collision with the bag support rod.
Bag opening method: adopting the latest mechanical shifting shaft type bag support mechanism to improve the stability of the bag opening and closing, which is beneficial to the transmission of the bag opening signal and avoids the possibility of collision with the bag opening.
Heat sealing detection: The stable tension spring photoelectric detection and guardrail limit increase the sensitivity of induction, and can accurately distinguish whether there is enough material in the bag, so as to intelligently judge whether to seal.
Sealing: twice heat sealing are used, and SMC large-power cylinder is used to increase the firmness of the seal.
| Model | JK8-200Y |
| Working Station | 8 Stations |
| Pneumatic Component | Japan SMC（Standard）/Taiwan Airtac（Non-Standard） |
| Measuring Device | Auger Filler,Liquid Filler,Sauces Filler |
| Applicable Bag Material | Lamination Film,PE,PP,etc. |
| Applicable Bag Type | Stand-up Pouch,3 Sides Sealing Bag, 4 Sides Sealing Bag,Zipper Bag,Sprout pouch,etc. |
| Applications | Ketchup,Salad,Peanut butter,Jam,Yogurt,Laundry detergent,etc. |
| Filling Range | 20g-2500g |
| Packaging Speed | 30-55bags/min |
| Packaging Accuracy | ≤±1% (depending on the material） |
| Packing Bag Specification | W：100-200mm L：200-300mm |
| Working Process | ①Bag Feeding②Date Printing ③Bag Opening ④First Filling ⑤Second Filling ⑥Transitional Station ⑦First Heat Sealing ⑧Second Heating Sealing |
| Total Power | 4KW |
| Drive Power | Three-phrase 380V 50Hz（Or Customized ） |
| Air Comsumption | 0.5m³/min (Provided by Customer) |
| Dimension | 3000mm*15000mm*2000mm（L*W*H） |
| Weight | 1500KG |
