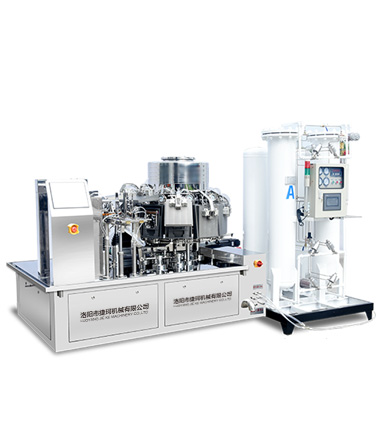

The full-automatic pre-made pouch packaging machine is composed of two rotary bodies (filling system and vacuum system). The vacuum system keeps continuously movement.
The full-automatic pre-made pouch packaging machine is composed of two rotary bodies (filling system and vacuum system). The vacuum system keeps continuously movement.
The size of the packaging bag can be changed quickly, and the width of the packaging bag can be automatically adjusted immediately.
Conforming to the sanitary standards of food processing machinery, the parts of the machine in contact with materials or packaging bags are made of 304 stainless steel to ensure food hygiene and safety.
The adoption of German Siemens PLC plus touch screen electrical control system, which provides friendly man-machine interface and convenient operation. Without clogging or sealing, the bag can be recycled without bag filling to avoid wasting.
Sealing temperature is monitored. If the heater is damaged, it will be automatically alarmed on the touch screen. We adopt instant heating and water cooling way for sealing to ensure smoother and beautiful seal.
The vacuum chamber is made of aviation aluminum, which is engraved and milled in the computer processing center to ensure air tightness and durability.
Model | JK-ZKCD-0915 | JK-ZKCD-1621 |
Vacuum Pump | German BUSCH/2.7KW Shanghai Zhongde/2.2KW(Optional) | |
Pneumatic Component | Japan SMC(Standard)/Taiwan Airtac(Non-Standard) | |
Measuring Device | Manual feeding,Marinated Egg Feeding,Shrinking Cup Feeding,Auger Filler, Electronic Multihead Combined Weigher(optional) | |
Applicable Bag Material | Aluminum Foil Bag, Paper Bag, Nylon Bag,etc. | |
Applicable Bag Type | 4 Sides Sealing Bag | |
Applications | Eggs,Meats,Pickles,Dried Tofu,Corn,Hotpot Noodles,etc. | |
Filling Range | 5g-500g | |
Packaging Speed | 50bags/min | |
Packaging Accuracy | ≤±1% (depending on the material) | |
Packing Bag Specification | W:55-90mm L:60-150mm | W:80-160mm L:60-210mm |
Total Power | 12KW | |
Drive Power | Three-phrase 380V 50Hz(Or Customized ) | |
Air Comsumption | 0.7m³/min (Provided by Customer) | |
Nitrogen Consumption | 5m³/hour | |
Dimension | 2600mm*1600mm*1600mm(L*W*H) | 2500mm*2100mm*1600mm(L*W*H) |
Weight | 2300KG | 2300KG |
