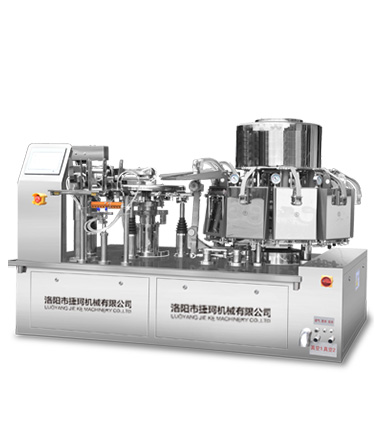

Pickles Vaccum Packaging MachineJK8-10-2331

The full-automatic pre-made pouch packaging machine is composed of two rotary bodies (filling system and vacuum system). The vacuum system keeps continuously movement.

Features

Technical Parameters

Model JK8-10-2331
Working Station 8 Stations
Vacuum Pump German BUSCH/2.7KW Shanghai Zhongde/2.2KW(Optional)
Pneumatic Component Japan SMC(Standard)/Taiwan Airtac(Non-Standard)
Measuring Device Manual feeding,Marinated Egg Feeding,Shrinking Cup Feeding,Auger Filler, Electronic Multihead Combined Weigher(optional)
Applicable Bag Material Aluminum Foil Bag, Paper Bag, Nylon Bag,etc.
Applicable Bag Type 4 Sides Sealing Bag
Applications Eggs,Meats,Pickles,Dried Tofu,Corn,Hotpot Noodles,etc.
Filling Range 5g-500g
Packaging Speed 45bags/min
Packaging Accuracy ≤±1% (depending on the material)
Packing Bag Specification W:55-130mm L:60-180mm
Working Process ①Bag Feeding②Date Printing ③Bag Opening ④First Material Feeding ⑤Second Material Feeding ⑥Bag Straightening ⑦Vacuum Chamber Transfer ⑧Vacancy
Total Power 9KW
Drive Power Three-phrase 380V 50Hz(Or Customized )
Air Comsumption 1m³/min (Provided by Customer)
Dimension 2500mm*2100mm*1600mm(L*W*H)
Weight 3000KG

Bag Types Convenient adjustment: the equipment can be adjusted at one time, and the adjustment distance is unified to ensure that the bag is stable and not dropped, further improving the qualification rate.

Application Convenient adjustment: the equipment can be adjusted at one time, and the adjustment distance is unified to ensure that the bag is stable and not dropped, further improving the qualification rate.

Auxiliary EquipmentIf you have any questions about the packaging machine, you can contact us at any time.
